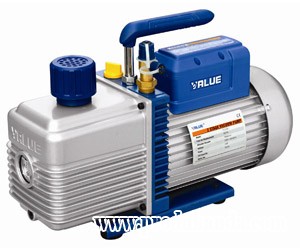

Vacuum Pump Value VE260 N
Model Technical name Technical parameters
VE260N Flow Rate 50Hz 6.0 CFM
170 l/ min
60Hz 7.0 CFM
198 l/ min
Ultimate vacuum Partial Pressure 2X10-1 Pa
Total pressure 15micron
Power 3/ 4 HP
Inlet port 1/ 4 " & 3/ 8 " Flare
Oil Capacity 700 ml
Dimensions( mm) 400X145X270
Weight 16.5 kg
