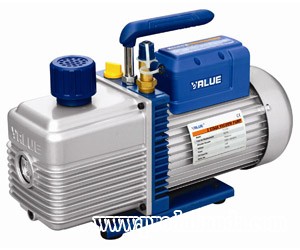

Vacuum Pump Value VE2100 N
Model Technical name Technical parameters
VE2100N Flow Rate 50Hz 10.0 CFM
283 l/ min
60Hz 12.0 CFM
340 l/ min
Ultimate vacuum Partial Pressure 2X10-1 Pa
Total pressure 15micron
Power 1 HP
Inlet port 1/ 4 " & 3/ 8 " Flare
Oil Capacity 590 ml
Dimensions( mm) o400X145X270
Weight 16.7 kg
