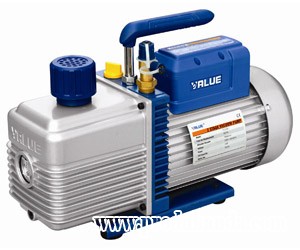

Vacuum Pump Value VE180N
Model Technical name Technical parameters
VE180N Flow Rate 50Hz 8.0 CFM
226 l/ min
60Hz 9.0 CFM
254 l/ min
Ultimate vacuum Partial Pressure 2 Pa
Total pressure 150micron
Power 3/ 4 HP
Inlet port 1/ 4 " & 3/ 8 " Flare
Oil Capacity 660 ml
Dimensions( mm) 395X145X257
Weight 14.6 kg
