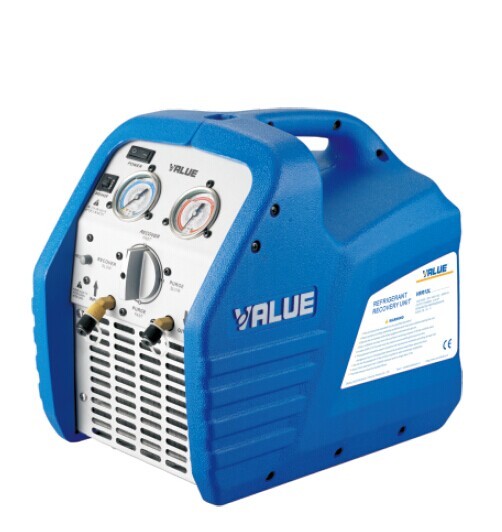

Recovery unit Value VRR24L

MANUAL
Economical recovery with 1 HP, oil-less compressor
Suitable for all commonly used refrigerants including R410A
ARI& CE certification approved

Characteristic

Value

Refrigerants

Category III: R12, R134a, R401C, R406A, R500.

Category IV: R22, R401A, R401B, R402B, R407C, R407D,

R408A, R409A, R411A, R411B, R412B, R502, R509.

Category V: R402A, R404A, R407A, R407B, R410A, R507.

Power supply

220V/ 50Hz

Motor

1 HP

Motor speed

1450 rpm @ 50 Hz

Maximal current draw

5A @ 220V

compressor

Oli-less, Air-cooled, piston style

Automatic safety Shut-off

38.5 bar / 3850 kPa ( 558 psi)

Recovery rate

Category III

Category IV

Category V

Vapor

0.46 kg/ min.

0.50 kg/ min.

0.52 kg/ min.

Liquid

2.73 kg/ min.

3.12 kg/ min.

3.38 kg/ min.

Push/ pull

7.47 kg/ min.

8.37 kg/ min.

9.95 kg/ min.

Operating temperature

0° C - 40° C

Dimensions

400 x 250 x 355 mm
