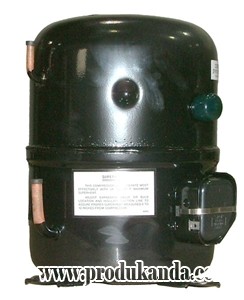

Compressor Tecumseh TFH4524F
Product Specifications
Performance
Refrigeration Capacity Input Power Efficiency EVAP TEMP COND TEMP AMBIENT TEMP RETURN GAS LIQUID TEMP
Condition Test Voltage Btu/ h kcal/ h W W Btu/ Wh kcal/ Wh W/ W
EN12900 ASERCOM 220V 3~ 50HZ 19457 4903 5701 1989 9.78 2.47 2.87 5° C ( 41° F) 45° C ( 113° F) 32° C ( 90° F) 15° C ( 59° F) 45° C ( 113° F)
General
Evaporating Temp. Range:
-15° C to 15° C ( 5° F to 59° F)
Motor Torque:
High Start Torque ( HST)
Compressor Cooling:
Fan
Mechanical
Weight:
30.782
Weight Unit of Measure:
KG
Displacement ( cc) :
43.5
Oil Type:
Mineral
Viscosity ( cSt) :
68
Oil Charge ( cc) :
1480
Electrical
Voltage Range ( 50 Hz) :
180-253
Voltage Range ( 60 Hz) :
187-264
Locked Rotor Amps ( LRA) :
45
Rated Load Amps ( RLA 50 Hz) :
7.7
Rated Load Amps ( RLA 60 Hz) :
7.7
Max. Continuous Current ( MCC in Amps) :
N/ A
Motor Resistance ( Ohm) - Main:
1.8
Motor Resistance ( Ohm) - Start:
1.8
Motor Type:
3PH
Overload Type:
INTERNAL
Relay Type:
N/ A
