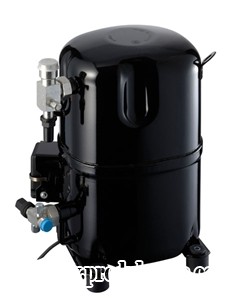

Compressor Tecumseh TAG4561T
Product Specifications
Performance
Refrigeration Capacity Input Power Efficiency EVAP TEMP COND TEMP AMBIENT TEMP RETURN GAS LIQUID TEMP
Condition Test Voltage Btu/ h kcal/ h W W Btu/ Wh kcal/ Wh W/ W
EN12900 ASERCOM 400V 3~ 50HZ 24184 6094 7086 3357 7.2 1.82 2.11 -10° C ( 14° F) 45° C ( 113° F) 32° C ( 90° F) 0° C ( 32° F) 45° C ( 113° F)
EN12900 ASERCOM 440V 3~ 60HZ 28727 7239 8417 3985 7.21 1.82 2.11 -10° C ( 14° F) 45° C ( 113° F) 32° C ( 90° F) 0° C ( 32° F) 45° C ( 113° F)
General
Evaporating Temp. Range:
N/ A
Motor Torque:
High Start Torque ( HST)
Compressor Cooling:
Fan
Mechanical
Weight:
46.601
Weight Unit of Measure:
KG
Displacement ( cc) :
112.5
Oil Type:
Mineral
Viscosity ( cSt) :
68
Oil Charge ( cc) :
1960
Electrical
Voltage Range ( 50 Hz) :
340-440
Voltage Range ( 60 Hz) :
396-499
Locked Rotor Amps ( LRA) :
51.5
Rated Load Amps ( RLA 50 Hz) :
7.7
Rated Load Amps ( RLA 60 Hz) :
8.6
Max. Continuous Current ( MCC in Amps) :
N/ A
Motor Resistance ( Ohm) - Main:
N/ A
Motor Resistance ( Ohm) - Start:
N/ A
Motor Type:
3PH
Overload Type:
INTERNAL
Relay Type:
N/ A
