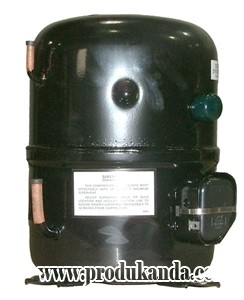

Tecumseh FH4525Y
Product Specifications
Performance
Refrigeration Capacity Input Power Efficiency EVAP TEMP COND TEMP AMBIENT TEMP RETURN GAS LIQUID TEMP
Condition Test Voltage Btu/ h kcal/ h W W Btu/ Wh kcal/ Wh W/ W
EN12900 ASERCOM 220V ~ 50HZ 20304 5117 5949 2082 9.75 2.46 2.86 5° C ( 41° F) 45° C ( 113° F) 32° C ( 90° F) 15° C ( 59° F) 45° C ( 113° F)
General
Evaporating Temp. Range:
-15° C to 15° C ( 5° F to 59° F)
Motor Torque:
High Start Torque ( HST)
Compressor Cooling:
Fan
Mechanical
Weight:
34.43
Weight Unit of Measure:
KG
Displacement ( cc) :
74.25
Oil Type:
Polyolester
Viscosity ( cSt) :
32
Oil Charge ( cc) :
1480
Electrical
Voltage Range ( 50 Hz) :
187-242
Voltage Range ( 60 Hz) :
N/ A
Locked Rotor Amps ( LRA) :
68
Rated Load Amps ( RLA 50 Hz) :
11.7
Rated Load Amps ( RLA 60 Hz) :
11.7
Max. Continuous Current ( MCC in Amps) :
16.1
Motor Resistance ( Ohm) - Main:
0.8
Motor Resistance ( Ohm) - Start:
3.5
Motor Type:
CSR
Overload Type:
INTERNAL
Relay Type:
N/ A
