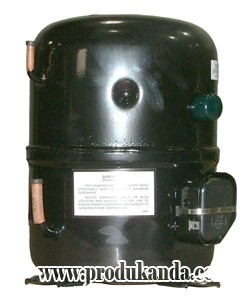

Compressor Tecumseh FH2511Z
Product Specifications
Performance
Refrigeration Capacity Input Power Efficiency EVAP TEMP COND TEMP AMBIENT TEMP RETURN GAS LIQUID TEMP
Condition Test Voltage Btu/ h kcal/ h W W Btu/ Wh kcal/ Wh W/ W
EN12900 ASERCOM 230V ~ 50HZ 4003 1009 1173 1534 2.61 .66 .76 -35° C ( -31° F) 40° C ( 104° F) 32° C ( 90° F) -25° C ( -13° F) 40° C ( 104° F)
General
Evaporating Temp. Range:
-40° C to -12.2° C ( -40° F to 10° F)
Motor Torque:
High Start Torque ( HST)
Compressor Cooling:
Fan
Mechanical
Weight:
37.531
Weight Unit of Measure:
KG
Displacement ( cc) :
74.25
Oil Type:
Polyolester
Viscosity ( cSt) :
32
Oil Charge ( cc) :
1625
Electrical
Voltage Range ( 50 Hz) :
198-253
Voltage Range ( 60 Hz) :
N/ A
Locked Rotor Amps ( LRA) :
83
Rated Load Amps ( RLA 50 Hz) :
11.2
Rated Load Amps ( RLA 60 Hz) :
11.5
Max. Continuous Current ( MCC in Amps) :
24
Motor Resistance ( Ohm) - Main:
0.7
Motor Resistance ( Ohm) - Start:
3.3
Motor Type:
CSR
Overload Type:
INTERNAL
Relay Type:
Potential Relay.
