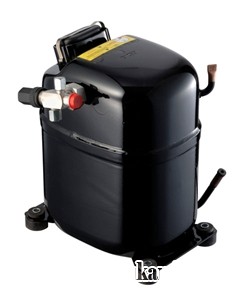

Compressor Tecumseh CAJ9513T
Product Specifications
Performance
Refrigeration Capacity Input Power Efficiency EVAP TEMP COND TEMP AMBIENT TEMP RETURN GAS LIQUID TEMP
Condition Test Voltage Btu/ h kcal/ h W W Btu/ Wh kcal/ Wh W/ W
EN12900 ASERCOM 230V ~ 50HZ 5693 1435 1668 881 6.46 1.63 1.89 -10° C ( 14° F) 45° C ( 113° F) 32° C ( 90° F) 0° C ( 32° F) 45° C ( 113° F)
General
Evaporating Temp. Range:
-23.3° C to 12.8° C ( -10° F to 55° F)
Motor Torque:
High Start Torque ( HST)
Compressor Cooling:
Fan
Mechanical
Weight:
23.953
Weight Unit of Measure:
KG
Displacement ( cc) :
24.2
Oil Type:
Mineral
Viscosity ( cSt) :
68
Oil Charge ( cc) :
887
Electrical
Voltage Range ( 50 Hz) :
198-253
Voltage Range ( 60 Hz) :
N/ A
Locked Rotor Amps ( LRA) :
30
Rated Load Amps ( RLA 50 Hz) :
5.9
Rated Load Amps ( RLA 60 Hz) :
5.9
Max. Continuous Current ( MCC in Amps) :
8.8
Motor Resistance ( Ohm) - Main:
2
Motor Resistance ( Ohm) - Start:
6.9
Motor Type:
CSR
Overload Type:
EXTERNAL
Relay Type:
Potential Relay
