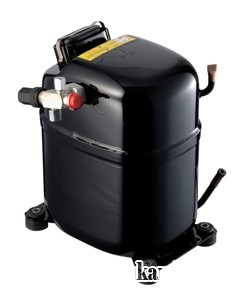

Compressor Tecumseh CAJ9510Z
Product Specifications
Performance
Refrigeration Capacity Input Power Efficiency EVAP TEMP COND TEMP AMBIENT TEMP RETURN GAS LIQUID TEMP
Condition Test Voltage Btu/ h kcal/ h W W Btu/ Wh kcal/ Wh W/ W
EN12900 ASERCOM 230V ~ 50HZ 4348 1096 1274 844 5.15 1.3 1.51 -10° C ( 14° F) 45° C ( 113° F) 32° C ( 90° F) 0° C ( 32° F) 45° C ( 113° F)
General
Evaporating Temp. Range:
-23.3° C to 12.8° C ( -10° F to 55° F)
Motor Torque:
High Start Torque ( HST)
Compressor Cooling:
Fan
Mechanical
Weight:
23.14
Weight Unit of Measure:
KG
Displacement ( cc) :
18.3
Oil Type:
Polyolester
Viscosity ( cSt) :
32
Oil Charge ( cc) :
887
Electrical
Voltage Range ( 50 Hz) :
198-253
Voltage Range ( 60 Hz) :
N/ A
Locked Rotor Amps ( LRA) :
30
Rated Load Amps ( RLA 50 Hz) :
5.3
Rated Load Amps ( RLA 60 Hz) :
5.3
Max. Continuous Current ( MCC in Amps) :
8
Motor Resistance ( Ohm) - Main:
N/ A
Motor Resistance ( Ohm) - Start:
N/ A
Motor Type:
CSR
Overload Type:
EXTERNAL
Relay Type:
Potential Relay.
