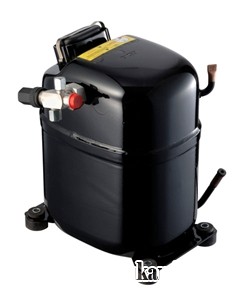

Compressor Tecumseh CAJ4517E
Product Specifications
Performance
Refrigeration Capacity Input Power Efficiency EVAP TEMP COND TEMP AMBIENT TEMP RETURN GAS LIQUID TEMP
Condition Test Voltage Btu/ h kcal/ h W W Btu/ Wh kcal/ Wh W/ W
EN12900 ASERCOM 220V ~ 60HZ 14754 3718 4323 1578 9.35 2.36 2.74 5° C ( 41° F) 45° C ( 113° F) 32° C ( 90° F) 15° C ( 59° F) 45° C ( 113° F)
General
Evaporating Temp. Range:
-15° C to 15° C ( 5° F to 59° F)
Motor Torque:
High Start Torque ( HST)
Compressor Cooling:
Fan
Mechanical
Weight:
23.42
Weight Unit of Measure:
KG
Displacement ( cc) :
25.95
Oil Type:
Mineral
Viscosity ( cSt) :
68
Oil Charge ( cc) :
887
Electrical
Voltage Range ( 50 Hz) :
N/ A
Voltage Range ( 60 Hz) :
187-242
Locked Rotor Amps ( LRA) :
45
Rated Load Amps ( RLA 50 Hz) :
8.5
Rated Load Amps ( RLA 60 Hz) :
8.5
Max. Continuous Current ( MCC in Amps) :
N/ A
Motor Resistance ( Ohm) - Main:
1.2
Motor Resistance ( Ohm) - Start:
6.1
Motor Type:
CSR
Overload Type:
EXTERNAL
Relay Type:
Potential Relay
