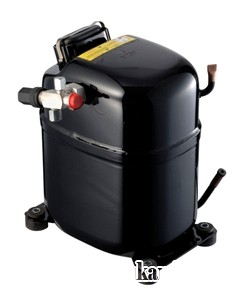

Compressor Tecumseh CAJ2432Z
Product Specifications
Performance
Refrigeration Capacity Input Power Efficiency EVAP TEMP COND TEMP AMBIENT TEMP RETURN GAS LIQUID TEMP
Condition Test Voltage Btu/ h kcal/ h W W Btu/ Wh kcal/ Wh W/ W
EN12900 ASERCOM 220V ~ 60HZ 1171 295 343 525 2.23 .56 .65 -35° C ( -31° F) 40° C ( 104° F) 32° C ( 90° F) -25° C ( -13° F) 40° C ( 104° F)
General
Evaporating Temp. Range:
-40° C to -12.2° C ( -40° F to 10° F) ,
Motor Torque:
High Start Torque ( HST)
Compressor Cooling:
Fan
Mechanical
Weight:
21.05
Weight Unit of Measure:
KG
Displacement ( cc) :
18.3
Oil Type:
Polyolester
Viscosity ( cSt) :
32
Oil Charge ( cc) :
887
Electrical
Voltage Range ( 50 Hz) :
N/ A
Voltage Range ( 60 Hz) :
187-242
Locked Rotor Amps ( LRA) :
31
Rated Load Amps ( RLA 50 Hz) :
3.3
Rated Load Amps ( RLA 60 Hz) :
3.3
Max. Continuous Current ( MCC in Amps) :
6.4
Motor Resistance ( Ohm) - Main:
2
Motor Resistance ( Ohm) - Start:
8.5
Motor Type:
CSR
Overload Type:
EXTERNAL
Relay Type:
Potential Relay
