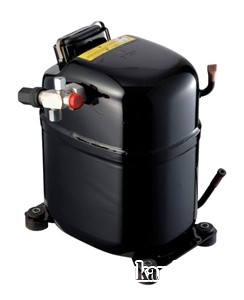

Compressor Tecumseh CAJ2428Z
Product Specifications
Performance
Refrigeration Capacity Input Power Efficiency EVAP TEMP COND TEMP AMBIENT TEMP RETURN GAS LIQUID TEMP
Condition Test Voltage Btu/ h kcal/ h W W Btu/ Wh kcal/ Wh W/ W
EN12900 ASERCOM 100V ~ 50HZ 812 205 238 347 2.34 .59 .69 -35° C ( -31° F) 40° C ( 104° F) 32° C ( 90° F) -25° C ( -13° F) 40° C ( 104° F)
EN12900 ASERCOM 115V ~ 60HZ 973 245 285 427 2.28 .57 .67 -35° C ( -31° F) 40° C ( 104° F) 32° C ( 90° F) -25° C ( -13° F) 40° C ( 104° F)
General
Evaporating Temp. Range:
-40° C to -12.2° C ( -40° F to 10° F)
Motor Torque:
High Start Torque ( HST)
Compressor Cooling:
Fan
Mechanical
Weight:
20.63
Weight Unit of Measure:
KG
Displacement ( cc) :
15.2
Oil Type:
Polyolester
Viscosity ( cSt) :
32
Oil Charge ( cc) :
887
Electrical
Voltage Range ( 50 Hz) :
90-110
Voltage Range ( 60 Hz) :
103-127
Locked Rotor Amps ( LRA) :
53
Rated Load Amps ( RLA 50 Hz) :
7.6
Rated Load Amps ( RLA 60 Hz) :
7.5
Max. Continuous Current ( MCC in Amps) :
12.4
Motor Resistance ( Ohm) - Main:
0.6
Motor Resistance ( Ohm) - Start:
4.3
Motor Type:
CSIR
Overload Type:
EXTERNAL
Relay Type:
Potential Relay
