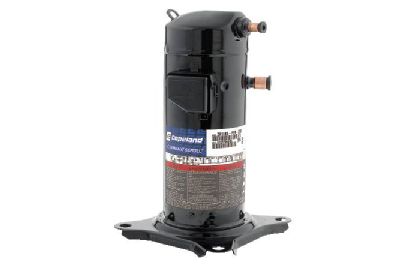

ZR81KCE-TFD
Power( Watts) :
Current( Amps) :
EER( Btu/ Wh) :
Mass Flow ( lbs/ hr) : 925.0
10.8
10.9
5900 3990
8.6
19.3
955.0
Overall Length( in) :
Overall Width ( in) :
Overall Height ( in) :
9.71
17.955
7.5
7.5
Mounting Height( in) : 18.205*
Mounting Width( in) :
Mounting Length( in) : 9.48
0.0 Stroke ( in) :
77000 63500 Capacity( Btu/ hr) :
Bore Size ( in) : 0.0 Displ( ft^ 3/ hr) : 662.2644
6.577 Displ( in^ 3/ Rev) : 0 Number of Cylinders:
65/ 85 65/ 115
Mechanical Performance
Sound Power( dBA) :
Vibration( mils( peak-peak) ) :
72Ave 77Max
2.0Ave 3.0Max 60
56 Oil Recharge( oz) :
Initial Oil Charge ( oz) :
Discharge Size( in) :
Suction Size ( in) :
86.0 Net Weight( lbs) :
2900
17.0 MCC ( Amps) :
RPM:
LR3104C CSA File No.:
101.0
LRA-Half Winding:
LRA-High* :
LRA-Low* : 90.5
UL File Date: 26-Jul-1993
SA-2337 UL File No.:
Electrical
Max Operating Current: 15.0
45/ 100 45/ 130
3/ 4 Stub
7/ 8 Stub
Air Conditioning
Evap( ° F) / Cond( ° F)
RG( ° F) / Liq( ° F)
258.0 Internal Free Volume( in^ 3) :
*
HorsePower
* Low and High refer to the low and high nominal voltage ranges for which the motor is approved.
Overall compressor height on Copeland Brand Product' s specified
mounting grommets.
RLA( = MCC/ 1.4; use for contactor selection) : 12.1
RLA ( = MCC/ 1.56; use for breaker & wire size selection) : 10.9
2005-04-15 Record Date:
Alternate Applications
Application Voltage Phase Refrigerant Frequency( Hz)
460 3 R-134a HFC 60 Air Conditioning
460 3 R-407C HFC 60 Air Conditioning
380/ 420 3 R-134a HFC 50 Air Conditioning
