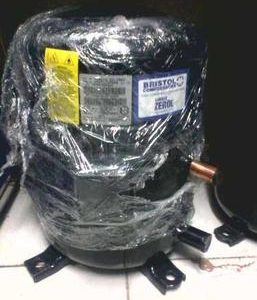

Compressor Bristol H2BG124 DBEA
Technical Specifications:
Voltage Phase Frequency Evaporator Temperature Range
380/ 415 3 50 -20° F to 55° F
Performance 1
ARI
( 380v)
Capacity ( Btu/ hr) 97 000
Motor Input ( Watt) 9 790
Current ( Amp) 16.4
EER ( Btu/ W-hr) 9.9
Efficiency ( % )

Evaporating Temp.° F 45
Condensing Temp.° F 130
Ambient Temp.° F 95
Liquid Temp.° F 115
Return Gas Temp.° F 65
Nominal Performance Data @ 50 Hz ( ± 5% ) based upon 72hr run-in

Mechanical Data
Bore X Stroke 2.188 X 1.188 in Speed 2950 rpm
Displacement N/ A ft3/ hr IPRV Setting 450 - 550 ” P( psi)
Displacement N/ A in3/ rev Refrigerant Charge Limit 10 lb

Electrical Data
RLA: 16.5 LRA: ( 1st Winding) : N/ A
( Full Winding) : 80 MCC: 25.0
Voltage Range: 342 - 457 Protection Type: Internal Line Break
U.L. File: SA5470 CE Approval: Yes CCC Approval: Yes

Motor Res. in Ohms ( ? ) ± 5%
T1-T3
( C-R) T1-T2
( C-S) T2-T3
( S-R)
1.380 1.380 2.760

Electrical Accessories
Module Voltage Options Crankcase Heater
24V Module, Bristol P/ N: N/ A Watts : 65
Bristol P/ N : 241615
120V Module, Bristol P/ N: N/ A Recommended Valves :
230V Module, Bristol P/ N: N/ A 1 5/ 8 Suction , Bristol P/ N : 250508
1 1/ 8 Discharge , Bristol P/ N : 250507

Other Technical Info
Oil Name: Alkylbenzene 150T Oil Charge
Oil Spec: 581006 Initial Charge: 96 oz Recharge: 80 oz
Viscosity: 28.2 cSt @ 40° C
Internal Free Volume: 1 041 in3 Weight Net: 146.0 lb
Max. Compressor Height: 18.344 in Weight Shipped: 155.0 lb
