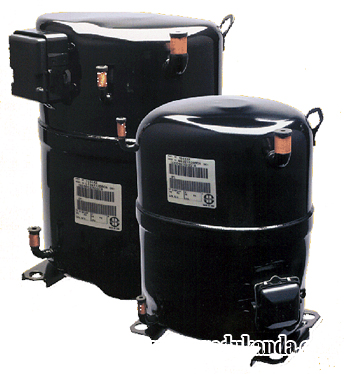

Compressor Bristol H29A723DBEA
Technical Specifications:
Voltage Phase Frequency Evaporator Temperature Range
380/ 415 3 50 -20° F to 55° F
Performance 1 2 3 4 5 6
ARI ARI ASRET B-POINT CHEER HEATPUMP
( 380v) ( 41 5v) ( 380v) ( 380v) ( 380v) ( 380v)
Capacity ( Btu/ hr) 61 700 61 200 65 100 72 000 77 600 51 000
Motor Input ( Watt) 5 580 5 540 5 920 4 900 4 430 4 450
Current ( Amp) 9.6 9.4 10.1 8.5 7.9 7.8
EER ( Btu/ W-hr) 11.1 11.0 11.0 14.7 17.5 11.5
Efficiency ( % )

Evaporating Temp.° F 45 45 45 45 45 30
Condensing Temp.° F 130 130 130 110 100 110
Ambient Temp.° F 95 95 95 95 95 95
Liquid Temp.° F 115 115 115 95 85 95
Return Gas Temp.° F 65 65 95 65 65 50
Nominal Performance Data @ 50 Hz ( ± 5% ) based upon 72hr run-in

Mechanical Data
Bore X Stroke 2.000 X 1.138 in Speed 2900 rpm
Displacement 720.0 ft3/ hr IPRV Setting 400 - 500 ” P( psi)
Displacement 7.150 in3/ rev Refrigerant Charge Limit 10 lb

Electrical Data
RLA: 9.6 LRA: 82 MCC: 14.0
Voltage Range: 342 - 456 Protection Type: Internal Line Break
U.L. File: SA5470 CE Approval: Yes CCC Approval: No

Motor Res. in Ohms ( ? ) ± 5%
T1-T3
( C-R) T1-T2
( C-S) T2-T3
( S-R)
1.540 1.540 3.080

Electrical Accessories
Start Relay: ( )
Start Cap: N/ A µ F/ volts
Run Cap: N/ Aµ F/ volts ( Parenthesis Denote Med.Torque Components)
PTCR Start Device: Ceramite P/ N: N/ A PTCR Start Device: AC Ohms: N/ A
Crankcase Heater Vendor P/ N: Sensata 9HT5
Type-Watts: PTCR - 47

Other Technical Info
Oil Name: 3GS Mineral Oil Oil Charge
Oil Spec: 581003 Initial Charge: 65 oz Recharge: 62 oz
Viscosity: 29.5 cSt @ 40° C
Internal Free Volume: 680 in3 Weight Net: 105.5 lb
Max. Compressor Height: 17.375 in Weight Shipped: 109.5 lb
