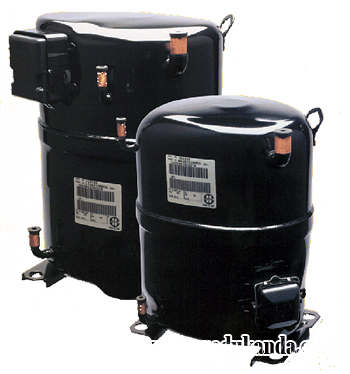

Compressor Bristol H23A623 DBEA
Technical Specifications:
Voltage Phase Frequency Evaporator Temperature Range
380/ 415 3 50 -20° F to 55° F
Performance 1 2 3 4 5 6
ARI ARI ASRET B-POINT CHEER HEATPUMP
( 380v) ( 41 5v) ( 380v) ( 380v) ( 380v) ( 380v)
Capacity ( Btu/ hr) 51 800 53 100 60 600 66 600 42 800
Motor Input ( Watt) 5 030 5 000 4 500 4 160 3 970
Current ( Amp) 8.2 0.0 8.2 7.5 7.1 6.8
EER ( Btu/ W-hr) 10.3 NaN 10.6 13.5 16.0 10.8
Efficiency ( % )

Evaporating Temp.° F 45 45 45 45 45 30
Condensing Temp.° F 130 130 130 110 100 110
Ambient Temp.° F 95 95 95 95 95 95
Liquid Temp.° F 115 115 115 95 85 95
Return Gas Temp.° F 65 65 95 65 65 50
Nominal Performance Data @ 50 Hz ( ± 5% ) based upon 72hr run-in

Mechanical Data
Bore X Stroke 2.000 X 1.004 in Speed 2950 rpm
Displacement 646.2 ft3/ hr IPRV Setting 400 - 500 ” P( psi)
Displacement 6.308 in3/ rev Refrigerant Charge Limit 6 lb

Electrical Data
RLA: 8.2 LRA: 62 MCC: 16.0
Voltage Range: 342 - 457 Protection Type: Internal Line Break
U.L. File: SA5470 CE Approval: Yes CCC Approval: Yes

Motor Res. in Ohms ( ? ) ± 5%
T1-T3
( C-R) T1-T2
( C-S) T2-T3
( S-R)
2.790 2.790 5.580
2.770 2.770

Electrical Accessories
Start Relay: ( )
Start Cap: N/ A µ F/ volts
Run Cap: N/ Aµ F/ volts ( Parenthesis Denote Med.Torque Components)
PTCR Start Device: Ceramite P/ N: N/ A PTCR Start Device: AC Ohms: N/ A
Crankcase Heater Vendor P/ N: Sensata 8HT5
Type-Watts: PCTR - 30

Other Technical Info
Oil Name: 3GS Mineral Oil Oil Charge
Oil Spec: 581003 Initial Charge: 55 oz Recharge: 52 oz
Viscosity: 29.5 cSt @ 40° C
Internal Free Volume: 568 in3 Weight Net: 83.0 lb
Max. Compressor Height: 16.125 in Weight Shipped: 87.5 lb
