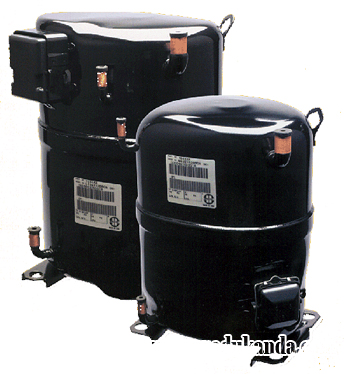

Compressor Bristol H23A38 QDBEA
Technical Specifications:
Voltage Phase Frequency Evaporator Temperature Range
380/ 415 3 50 -20° F to 55° F
Performance 1 2 3
ARI B-POINT HEATPUMP
( 380v) ( 380v) ( 380v)
Capacity ( Btu/ hr) 31 100 37 800 25 500
Motor Input ( Watt) 3 040 2 710 2 380
Current ( Amp) 5.2 4.9 4.3
EER ( Btu/ W-hr) 10.2 14.0 10.7
Efficiency ( % )

Evaporating Temp.° F 45 45 30
Condensing Temp.° F 130 110 110
Ambient Temp.° F 95 95 95
Liquid Temp.° F 115 95 95
Return Gas Temp.° F 65 65 50
Nominal Performance Data @ 50 Hz ( ± 5% ) based upon 72hr run-in

Mechanical Data
Bore X Stroke 2.000 X 0.660 in Speed 2950 rpm
Displacement 424.8 ft3/ hr IPRV Setting 400 - 500 ” P( psi)
Displacement 4.147 in3/ rev Refrigerant Charge Limit 6 lb

Electrical Data
RLA: 5.3 LRA: 39 MCC: 9.5
Voltage Range: 342 - 457 Protection Type: Internal Line Break
U.L. File: SA5470 CE Approval: Yes CCC Approval: Yes

Motor Res. in Ohms ( ? ) ± 5%
T1-T3
( C-R) T1-T2
( C-S) T2-T3
( S-R)
4.080 4.080 8.160

Electrical Accessories
Start Relay: N/ A
Start Cap: N/ A µ F/ volts
Run Cap: N/ Aµ F/ volts ( Parenthesis Denote Med.Torque Components)
PTCR Start Device: Ceramite P/ N: N/ A PTCR Start Device: AC Ohms: N/ A
Crankcase Heater Vendor P/ N: Sensata 8HT5
Type-Watts: PCTR - 30

Other Technical Info
Oil Name: 3GS Mineral Oil Oil Charge
Oil Spec: 581003 Initial Charge: 50 oz Recharge: 47 oz
Viscosity: 29.5 cSt @ 40° C
Internal Free Volume: 552 in3 Weight Net: 74.0 lb
Max. Compressor Height: 14.625 in Weight Shipped: 78.5 lb .
