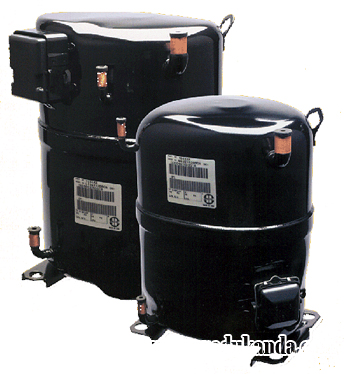

Compressor Bristol H23A38QABKA
Technical Specifications:
Voltage Phase Frequency Evaporator Temperature Range
220/ 240 1 50 -20° F to 55° F
Performance 1 2 3
ARI B-POINT HEATPUMP
( 220v) ( 220v) ( 220v)
Capacity ( Btu/ hr) 31 200 37 700 25 500
Motor Input ( Watt) 3 090 2 750 2 410
Current ( Amp) 14.9 13.4 12.0
EER ( Btu/ W-hr) 10.1 13.7 10.6
Efficiency ( % )

Evaporating Temp.° F 45 45 30
Condensing Temp.° F 130 110 110
Ambient Temp.° F 95 95 95
Liquid Temp.° F 115 95 95
Return Gas Temp.° F 65 65 50
Nominal Performance Data @ 50 Hz ( ± 5% ) based upon 72hr run-in

Mechanical Data
Bore X Stroke 2.000 X 0.660 in Speed 2950 rpm
Displacement 424.8 ft3/ hr IPRV Setting 400 - 500 ” P( psi)
Displacement 4.147 in3/ rev Refrigerant Charge Limit 6 lb

Electrical Data
RLA: 14.9 LRA: 82 MCC: 28.0
Voltage Range: 198 - 264 Protection Type: Internal Line Break
U.L. File: SA5470 CE Approval: Yes CCC Approval: Yes

Motor Res. in Ohms ( ? ) ± 5%
T1-T3
( C-R) T1-T2
( C-S) T2-T3
( S-R)
0.730 2.520 3.250

Electrical Accessories
Start Relay: GE 3ARR3* 4AA*
Start Cap: 145-175/ 330 µ F/ volts
Run Cap: 35/ 440µ F/ volts ( Parenthesis Denote Med.Torque Components)
PTCR Start Device: Ceramite P/ N: N/ A PTCR Start Device: AC Ohms: N/ A
Crankcase Heater Vendor P/ N: Sensata 8HT5
Type-Watts: PCTR - 30

Other Technical Info
Oil Name: 3GS Mineral Oil Oil Charge
Oil Spec: 581003 Initial Charge: 50 oz Recharge: 47 oz
Viscosity: 29.5 cSt @ 40° C
Internal Free Volume: 552 in3 Weight Net: 78.0 lb
Max. Compressor Height: 14.625 in Weight Shipped: 82.5 lb
