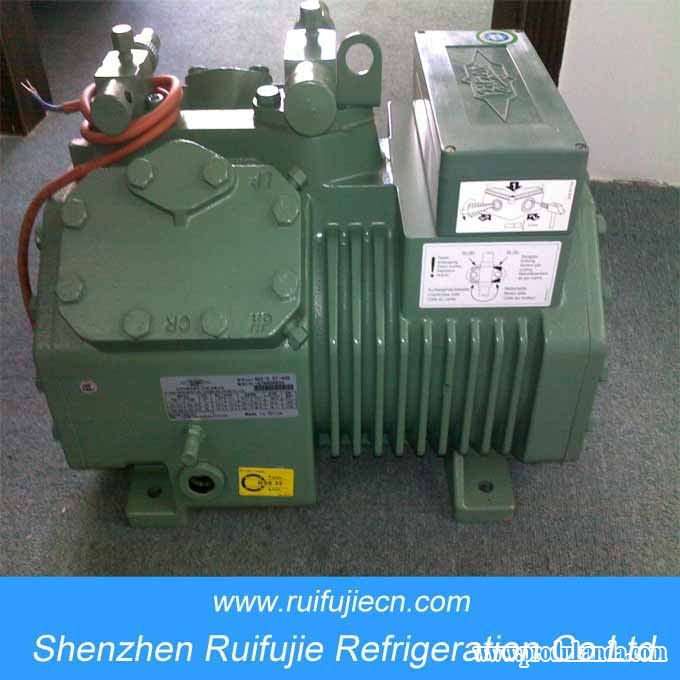

Compressor Bitzer 6F.2
Technical Data

SI

IP

Displacement ( 1450 RPM 50Hz)

151, 6 m3/ h

5353, 7 CFH

Displacement ( 1750 RPM 60Hz)

183, 0 m3/ h

6462, 6 CFH

No. of cylinder x bore x stroke

6 x 82 mm x 55 mm

6 x 82 mm x 55 mm

Allowed speed range

900 .. 1750 1/ min

900 .. 1750 rpm

Coupling ( ..-K) for A/ C + medium

KK620 [ < 22kW] / KK630 [ < 45kW] ( Option)

KK620 [ < 22kW] / KK630 [ < 45kW] ( Option)

Coupling ( ..-K) for low temperature

KK625 [ < 22kW] / KK630 [ < 45kW] ( Option)

KK625 [ < 22kW] / KK630 [ < 45kW] ( Option)

Coupling housing

Option

Option

Motor pulley ( ..-S)

190, 210, 230 mm ( Option)

190, 210, 230 mm ( Option)

V-belts

5 x SPA ( Option)

5 x SPA ( Option)

Weight

161 kg

355, 0 lb

Maximum pressure ( LP/ HP)

19 / 25 bar

275 / 363 psi

Connection suction line

54 mm - 2 1/ 8'

54 mm - 2 1/ 8'

Connection discharge line

35 mm - 1 3/ 8'

35 mm - 1 3/ 8'

Connection cooling water

R 3/ 4' ( Option)

R 3/ 4' ( Option)

Oil type R134a / / R407A/ C/ F / / R404A / / R507A

tc55° C: BSE55 ( Option)

tc55° C: BSE55 ( Option)

Oil type NH3

--

--

Oil type R22 R22 ( R12 / / R502)

B5.2 ( Standard)

B5.2 ( Standard)

Oil charge

5, 0 dm3

176, 0 fl oz
