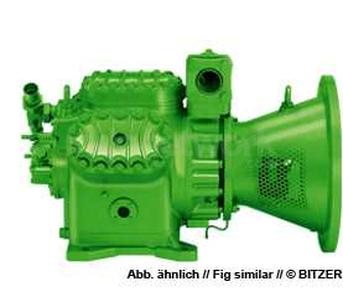

Compressor Bitzer 2DC-3.2
Technical Data

SI

IP

Motor version

1

1

Displacement ( 1450 RPM 50Hz)

13.42 m3/ h

473.9 CFH

Displacement ( 1750 RPM 60Hz)

16.20 m3/ h

572.1 CFH

No. of cylinder x bore x stroke

2 x 50 mm x 39.3 mm

2 x 1.97 inch x 1.55 inch

Motor code

40S

4SU

Motor voltage ( more on request)

220..240V ” / 3/ 50Hz
380..420V Y/ 3/ 50Hz

265..290V ” / 3/ 60Hz
440..480V Y/ 3/ 60Hz

Max operating current

7.8A ( Y)

7.9A ( Y)

Maximum power consumption

4.5 kW

4.5 kW

Starting current ( Rotor locked)

64A / 37A ( ” / Y)

39.5A

Enclosure class

 IP65

 IP65

Weight

70.5 kg

155 lb

Maximum pressure ( LP/ HP)

19 / 28 bar

275 / 400 psi

Connection suction line

22 mm

7/ 8 "

Connection discharge line

16 mm

5/ 8 "

Oil charge

1.50 dm3

52.8 fl oz

Crankcase heater ( self-control)

 max. 120 W

 max. 120 W

Oil type R134a / / R407A/ C/ F / / R404A / / R507A

 tc55° C: BSE55

 tc130° F: BSE55
